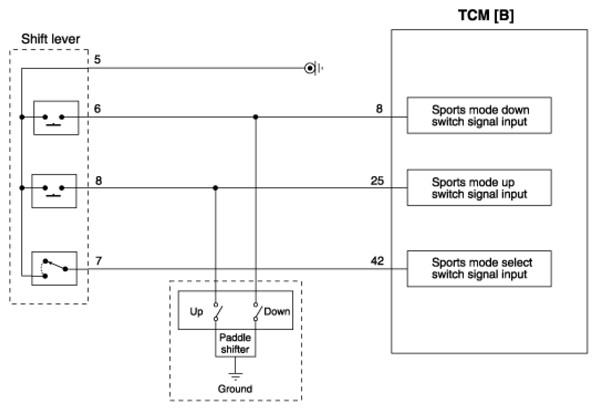

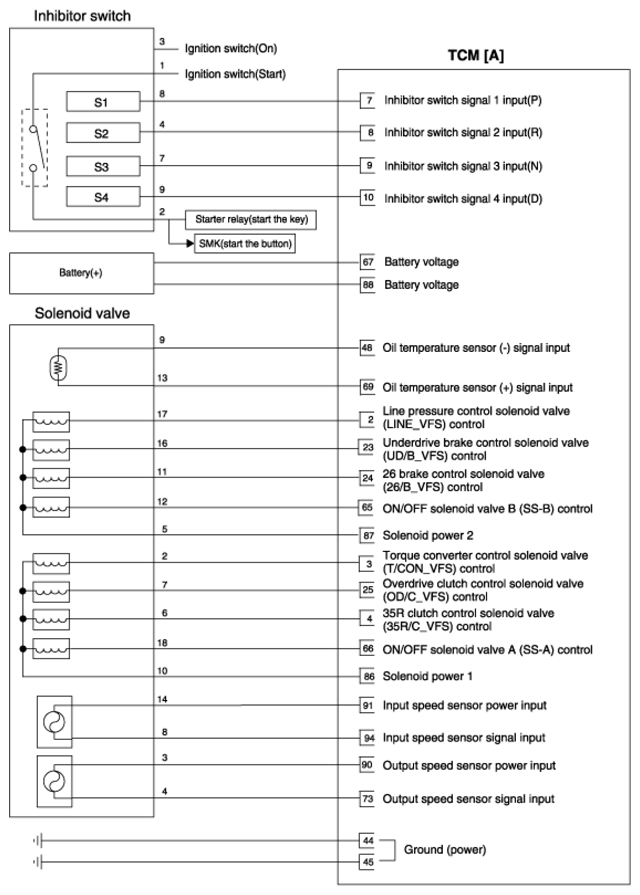

Home › Hyundai › 2019 › Santa Fe SEL, AWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
