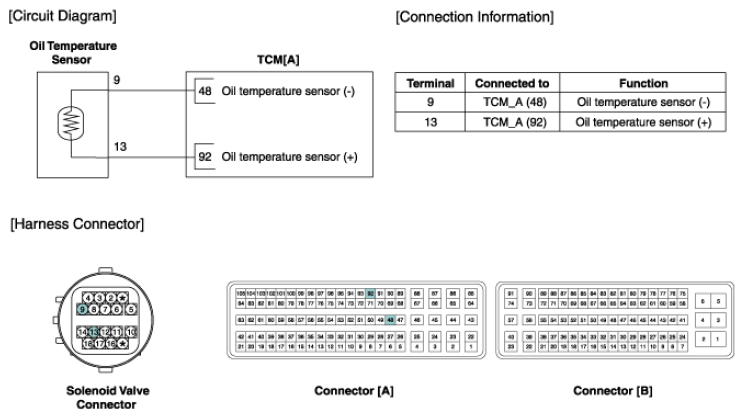

Home › Hyundai › 2019 › Sonata Plug-In Hybrid Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (PHEV) › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
