Tailgate Lock Module Inspection

Remove the trunk lid trim.
(Refer to "TRUNK LID TRIM ")

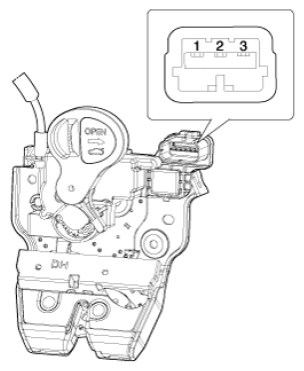

Disconnect the connector from the actuator

Courtesy of HYUNDAI MOTOR AMERICA
Check actuator operation by connecting power and ground as displayed in the image below. To prevent damage to the actuator, apply battery voltage only momentarily.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Checking the trunk of the vehicle power option power refers to the trunk module.
