FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

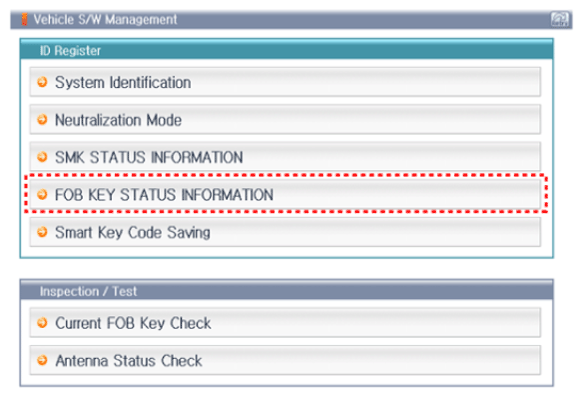

    G12794952Courtesy of HYUNDAI MOTOR AMERICA

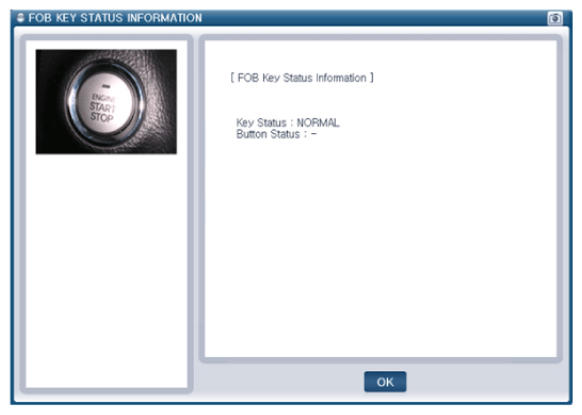

    G12794953Courtesy of HYUNDAI MOTOR AMERICA
