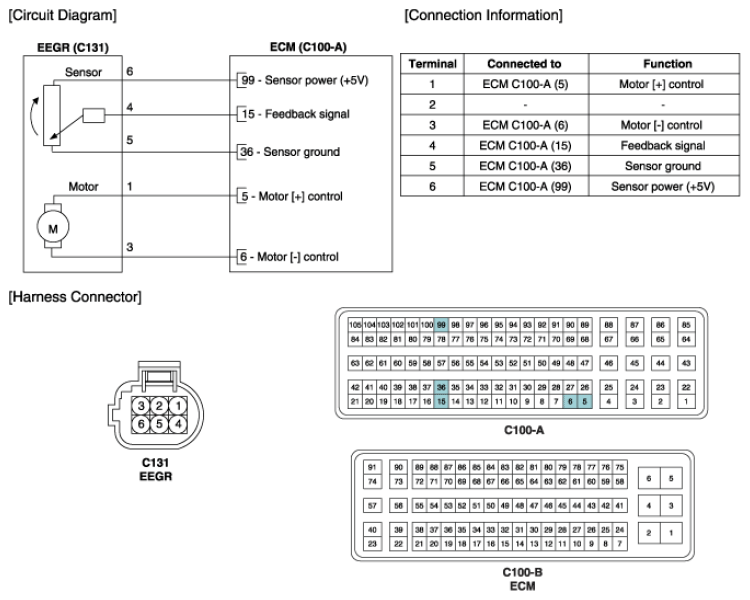

Home › Hyundai › 2019 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram
