Repair Procedures: Inspection
- Turn ignition switch OFF.
- Remove the Hybrid Power Control Unit (HPCU) assembly. (Refer to "HPCU ")

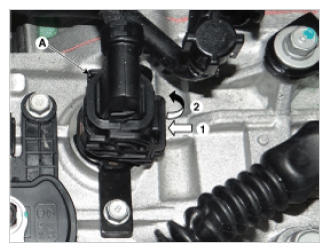

- Disconnect the solenoid valve connector (A).
- Measure the resistance between power terminal (5) and signal terminal (17).
Specification: 5.1 ± 0.3 Ω
