ESP Operation Mode

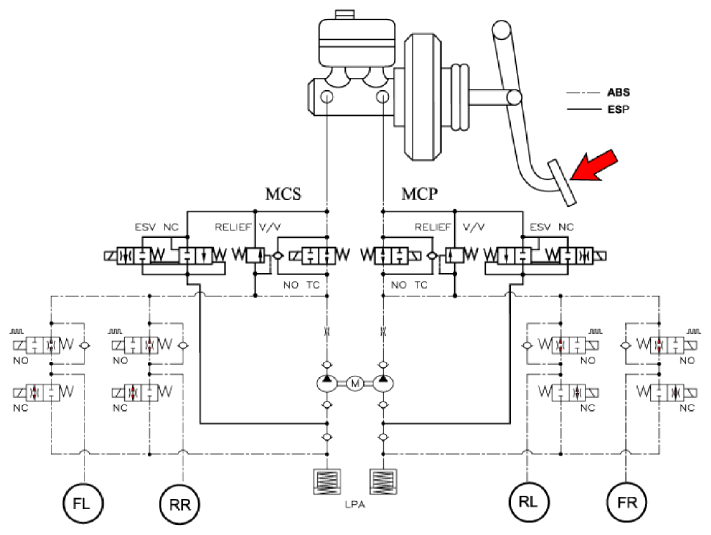

G13053544Courtesy of HYUNDAI MOTOR AMERICA
  1. ESP Non-operation: Normal breaking
    Solenoid valve Continuity Valve Motor pump TC valve
    IN (NO) OFF OPEN OFF OFF
    OUT (NC) OFF CLOSE
  2. ESP operation
    Solenoid valve Continuity Valve Motor pump TC valve
    Under-steering
    (Only inside of rear wheel)    		 IN (NO) OFF OPEN ON ON
    OUT (NC) OFF CLOSE
    Over-steering
    (Only outside of front wheel)    		 IN (NO) OFF OPEN
    OUT (NC) OFF CLOSE
    G13053545Courtesy of HYUNDAI MOTOR AMERICA
