Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX UPPER COVER HOUSING ")

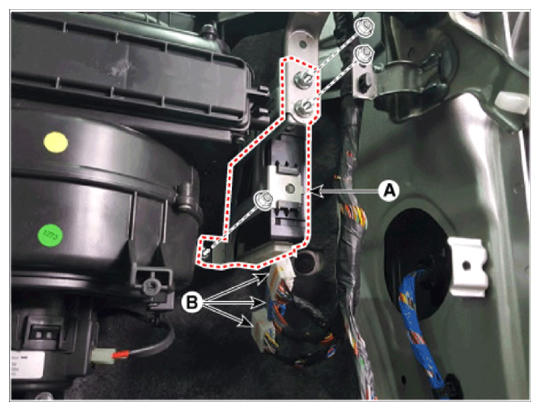

- Remove the smart key unit (A) after loosening the nuts and disconnecting the connectors (B).
(Refer to Body - "GLOVE BOX UPPER COVER HOUSING ")
