Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the canister assembly.
(Refer to Emission Control System - "CANISTER ")

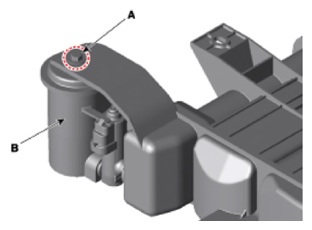

- Remove the installation bolt (A), and then remove the air filter (B).

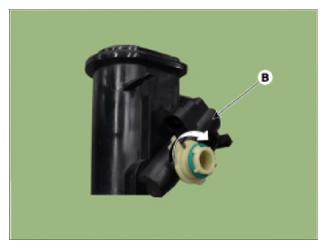

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow shown in the figure.
- Install a new fuel tank air filter in accordance with the reverse order.
