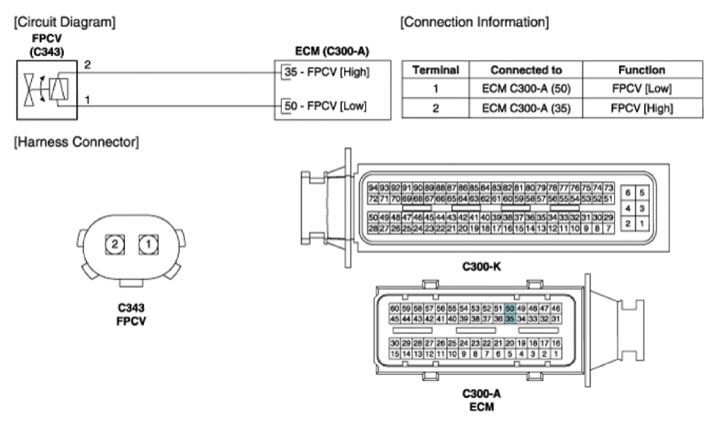

Home › Hyundai › 2020 › Elantra Eco › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.4L › Fuel Pressure Control Valve (FPCV) › Schematic Diagrams › Circuit Diagram
