Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

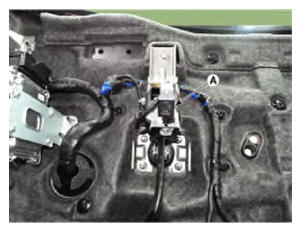

  3. Disconnect the stop lamp switch connector (A).
    G14116761Courtesy of HYUNDAI MOTOR AMERICA

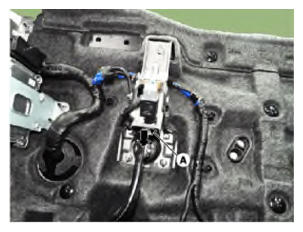

  4. Pull the locking plate (A) as indicated by the arrow.
    G14116762Courtesy of HYUNDAI MOTOR AMERICA
  5. Turn stop lamp switch 45° counterclockwise and remove it.
    G14116763Courtesy of HYUNDAI MOTOR AMERICA
  6. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
      G14116764Courtesy of HYUNDAI MOTOR AMERICA
    2. Perform the inspection of parts resistance
    G14116765Courtesy of HYUNDAI MOTOR AMERICA
Resistance (Ω) 3-4 1-2
Non rod protruded (switch turned OFF) Infinite 0
Rod protruded (switch turned On) 0 Infinite
