Home › Hyundai › 2020 › Elantra Eco › Repair and Diagnosis › Transmission › Transmission Control Systems › Double Clutch Transmission Control System - 1.4L › Gear Actuator Assembly › Components And Components Location › Components

Components And Components Location: Components

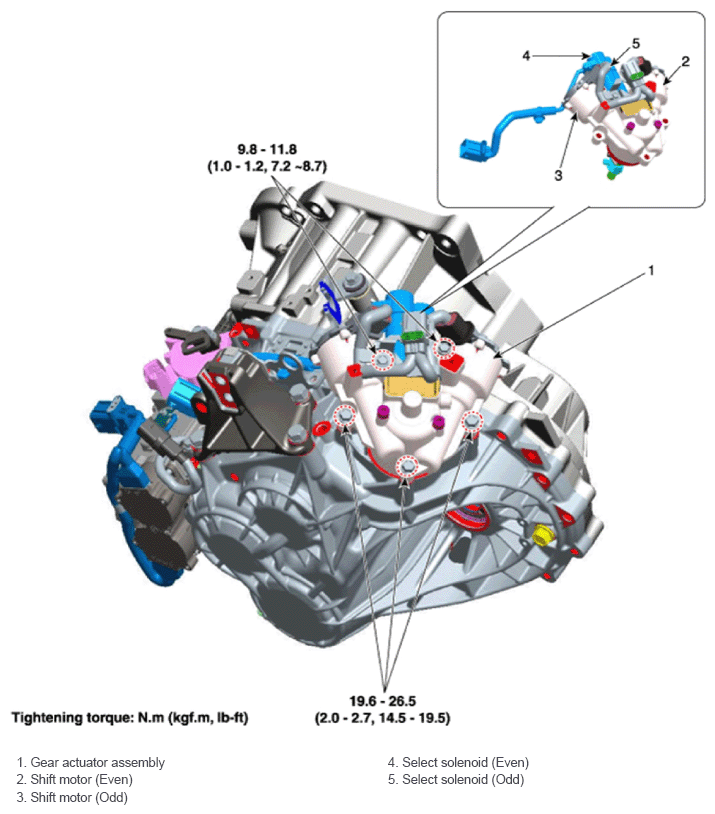

Fig 1: Gear Actuator Assembly Components Location With Torque Specifications
G14116940Courtesy of HYUNDAI MOTOR AMERICA
