Components And Components Location: Components

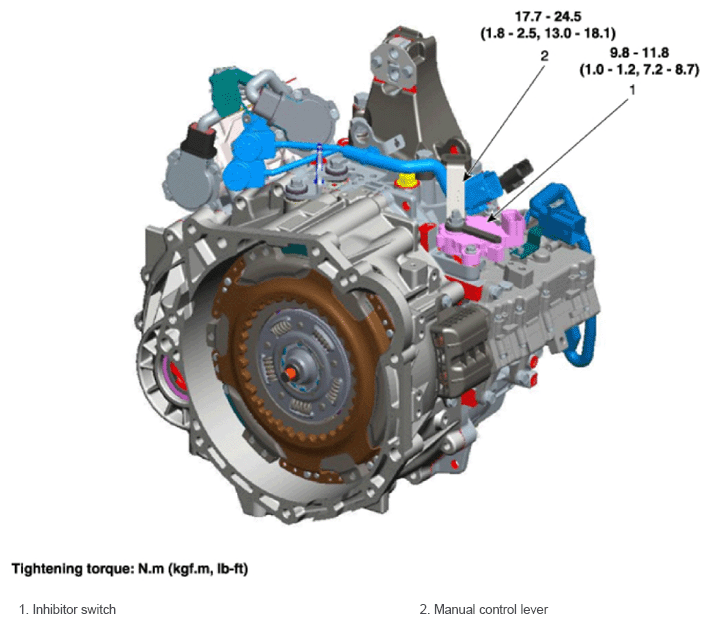

Fig 1: Inhibitor Switch Components Location With Torque Specifications
G14116964Courtesy of HYUNDAI MOTOR AMERICA
