Repair Procedures: Installation
- Install in the reverse order of removal.NOTE:
- Before installing, check that the shift lever and manual control lever are placed in the "N" position.

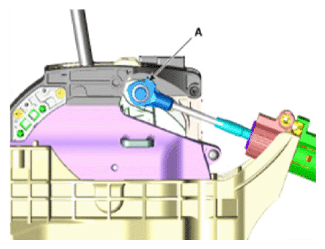

CAUTION:- When assembling shift cable, the projection (A) must face upwards.

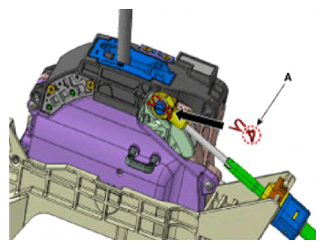

- When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

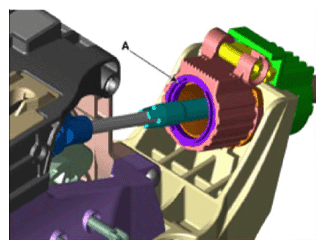

- After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.
