Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Crash Pad Side Garnish (RH).

    (Refer to Body - "CRASH PAD ")

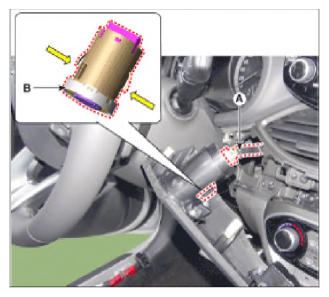

  3. Remove the start/stop button (B) after disconnecting the start/stop button connector (A).
    G13036102Courtesy of HYUNDAI MOTOR AMERICA
