Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

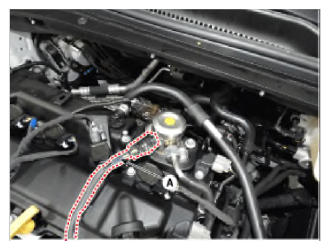

  3. Disconnect the fuel feed tube quick-connector (A).
    G13037044Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)
    G13037045Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When removing the Quick-Connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
    If the clip is damaged, fuel line leak can be occurred due to a bad connection.
    G13037046Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G13037047Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

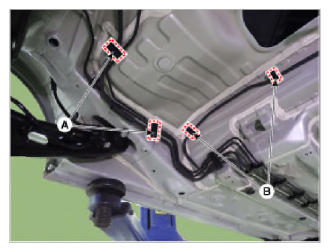

  7. Remove the vapor tube line fixing clip (A).
  8. Remove the feed line fixing clip (B).
    G13037048Courtesy of HYUNDAI MOTOR AMERICA

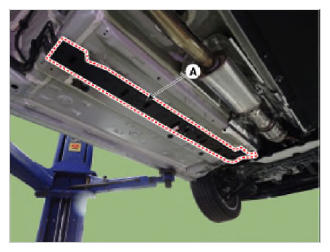

  9. Remove the fuel and brake line protector (A).
    G13037049Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the fuel line (A).
G13037050Courtesy of HYUNDAI MOTOR AMERICA
