Repair Procedures: Inspection: Notes

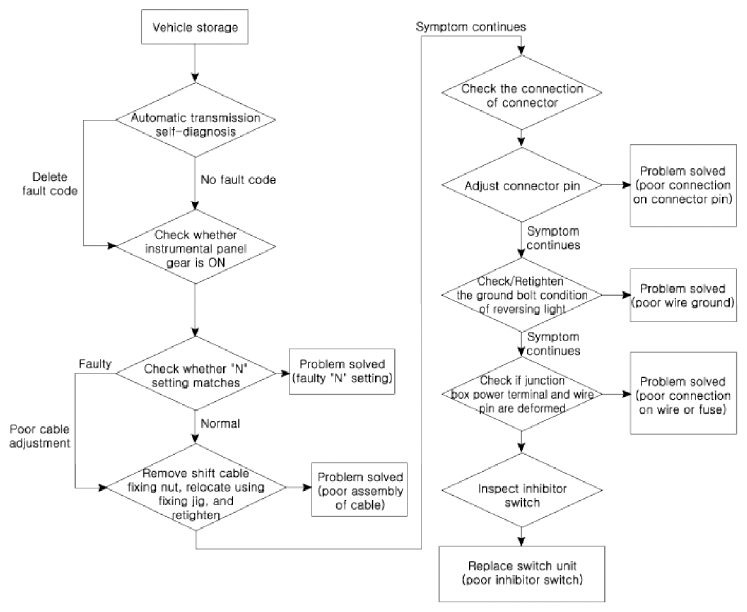

Inspection flow of the inhibitor switch

G13037383Courtesy of HYUNDAI MOTOR AMERICA
