Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the canister assembly.
(Refer to Emission Control System - "CANISTER ")

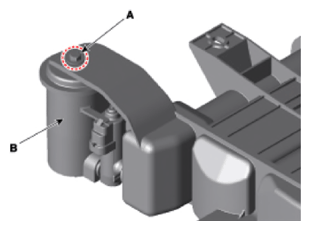

- Remove the installation bolt (A), and then remove the air filter (B).

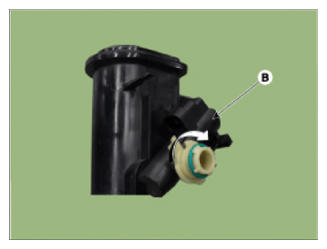

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the illustration.
- Install a new fuel tank air filter in accordance with the reverse order.
