Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then remove battery (-) cable.
  2. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

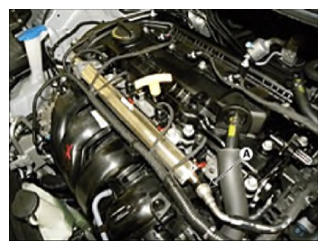

  3. Disconnect the fuel feed quick-connector (A).
    G14084586Courtesy of HYUNDAI MOTOR AMERICA

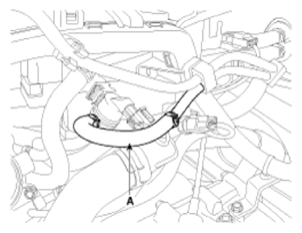

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G14084587Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

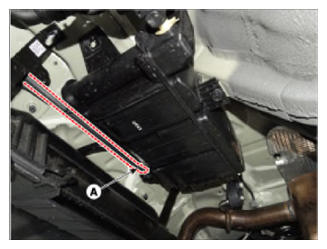

  7. Disconnect the vapor tube quick-connector (A).
    G14084588Courtesy of HYUNDAI MOTOR AMERICA

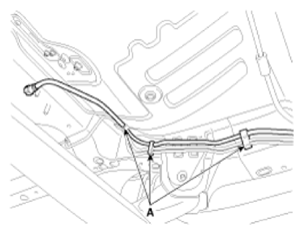

  8. Remove the vapor tube line fixing clip (A).
    G14084589Courtesy of HYUNDAI MOTOR AMERICA

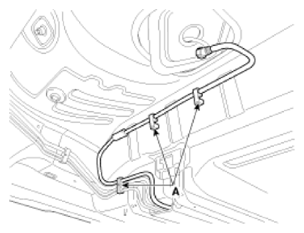

  9. Remove the fuel feed line fixing clip (A).
    G14084590Courtesy of HYUNDAI MOTOR AMERICA

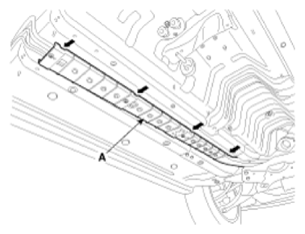

  10. Disconnect the fuel & brake line protect (A) from the fixing clip.
    G14084591Courtesy of HYUNDAI MOTOR AMERICA

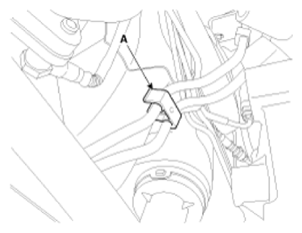

  11. Remove the fuel line fixing clip (A).
    G14084592Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the fuel line (A).
    G14084593Courtesy of HYUNDAI MOTOR AMERICA
