Body control unit

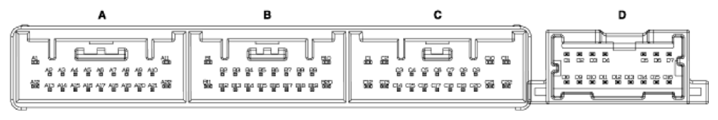

G14082149Courtesy of HYUNDAI MOTOR AMERICA
Pin Function
C22 Ignition 2_Heated handle power
C11 Heated handle
A21 NTC (-)
B15 NTC (+)
D10 Heated handle IND.
