Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

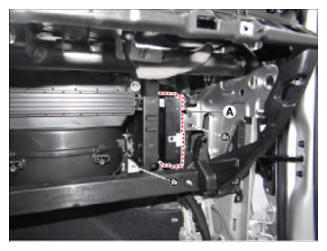

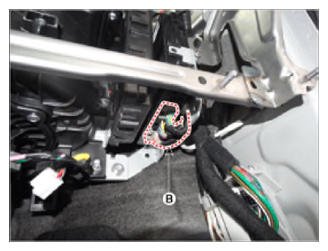

- Remove the smart key unit (A) after disconnecting the connectors (B) and loosening the bolt and nut.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")
