Repair Procedures: Replacement

  1. Open the cover and loosen the front seat mounting bolts.

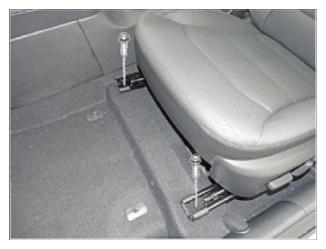

    [Front]

    Tightening torque:  49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G14082930Courtesy of HYUNDAI MOTOR AMERICA

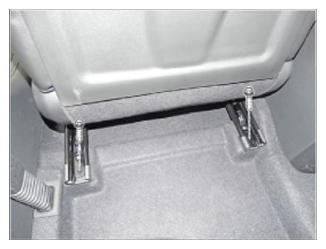

    [Rear]

    Tightening torque:  49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G14082931Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the main connector (A), front seat belt buckle connector (B), airbag connector (C), seat belt reminder connector (D).

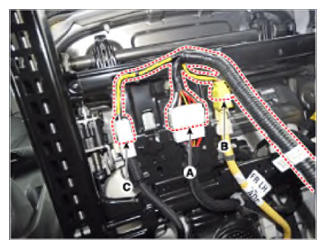

    [Driver's]

    G14082932Courtesy of HYUNDAI MOTOR AMERICA

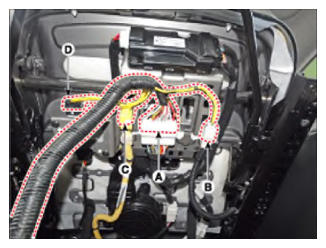

    [Passenger's]

    G14082933Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    The installation procedures of seat mounting bolts

    • Push the seat to the rear end of slides and initially tighten the front mounting bolts.
    • Push the seat to the front end of slides and completely tighten the rear mounting bolts.
    • Send the seat to the rear end again to completely tighten the front mounting bolts.
    • Check the seat for smooth movement.
    • For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
