Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the connector (A), and then remove the sensor (B).

• Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

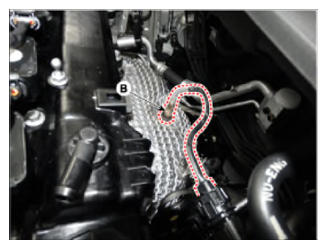

[Bank 1/Sensor 1]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

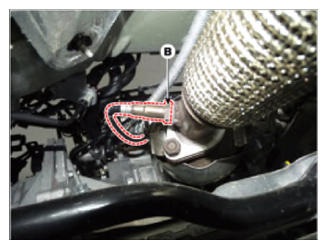

[Bank 1/Sensor 2]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
