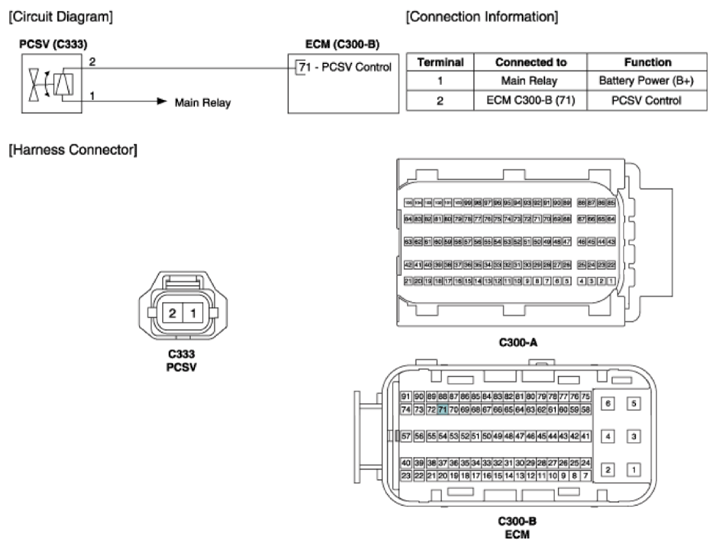

Home › Hyundai › 2020 › Elantra SEL › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram
