Repair Procedures: Inspection

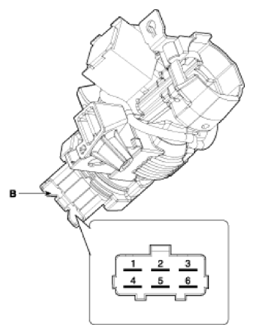

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G14083735Courtesy of HYUNDAI MOTOR AMERICA
    G14083736Courtesy of HYUNDAI MOTOR AMERICA

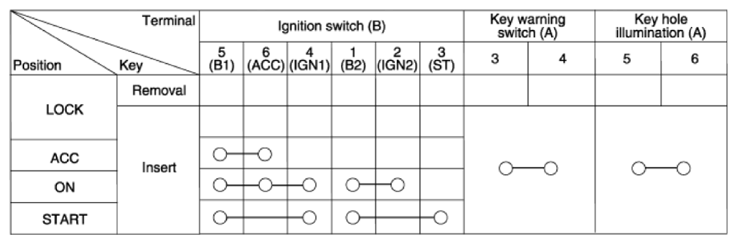

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14083737Courtesy of HYUNDAI MOTOR AMERICA
