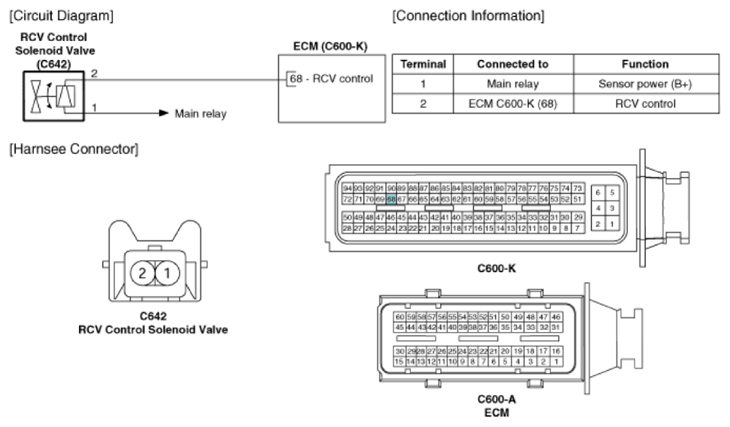

Home › Hyundai › 2020 › Elantra Sport › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › RCV Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
