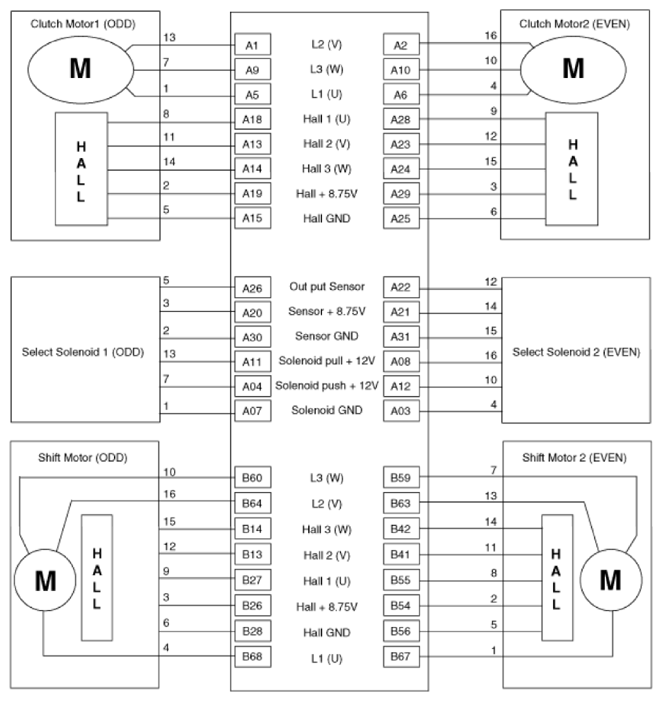

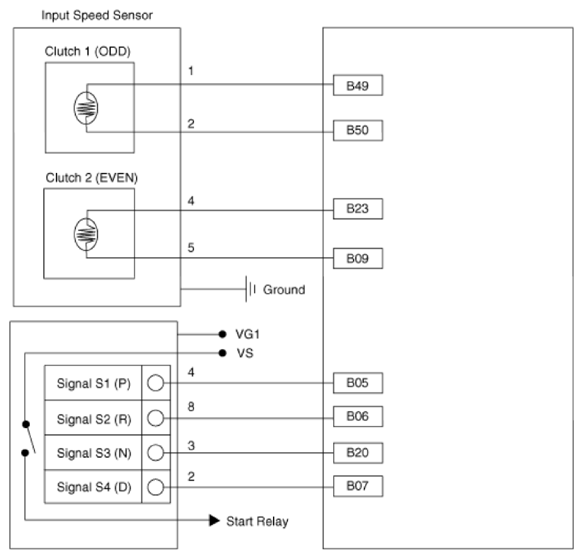

Home › Hyundai › 2020 › Elantra Sport › Repair and Diagnosis › Transmission › Transmission Control Systems › Double Clutch Transmission Control System - 1.6L › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
