Repair Procedures: Installation

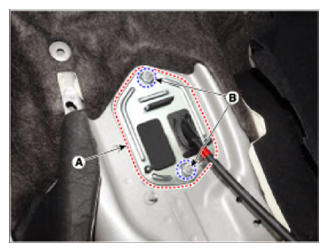

  1. Install the retainer (A) and then tighten the nut (B-2ea).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G14081824Courtesy of HYUNDAI MOTOR AMERICA

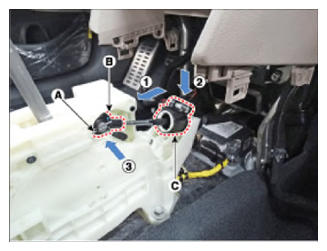

  2. Install the shift cable (B) and then fix the snap pin (A).
    G14081825Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

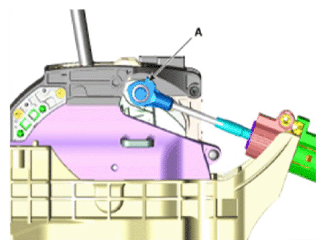

    • When assembling shift cable, the projection (A) must face upwards.
      G14081826Courtesy of HYUNDAI MOTOR AMERICA

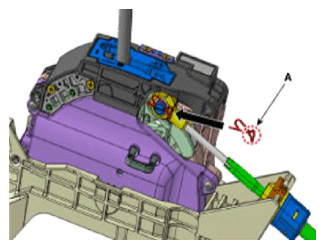

    • When assembling the snap pin, be careful about the correct direction.
    • The band portion (A) must point to the front of the vehicle.
    • The band portion (A) must point outwards.
      G14081827Courtesy of HYUNDAI MOTOR AMERICA

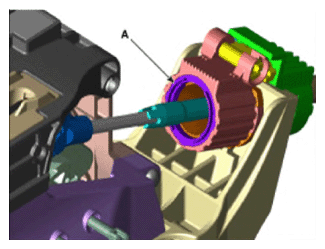

    • After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.
      G14081828Courtesy of HYUNDAI MOTOR AMERICA

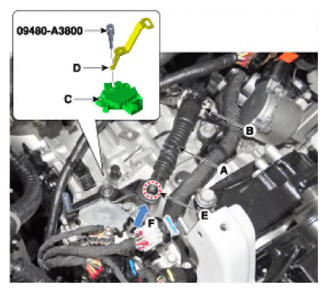

  3. Install the shift cable (A) in the cable bracket (B).
  4. Align the hole (C) in the manual control lever with the "N" position hole (D) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.:09480-A3800).
  5. Lightly tighten the nut (E) after connected the shift cable (B) in the manual control lever.
  6. Push shift cable (B) lightly to "F" direction shown in illustration to eliminate free play of shift cable.
  7. Tighten the nut (E) with the specified torque.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

    G14081829Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the inhibitor switch guide pin (SST No.:09480-A3800) from the hole.
  9. Install the battery and tray.

    (Refer to Engine Electrical System - "BATTERY ")

  10. Install the ECM.

    (Refer to Engine Control System - "ECM ")

  11. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

    CAUTION:
    • Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
