Home › Hyundai › 2020 › Elantra Value Edition › Repair and Diagnosis › Accessories & Equipment › Memory Modules › Integrated Memory System (IMS) › Memory Power Seat Switch › Repair Procedures › Inspection

Repair Procedures: Inspection

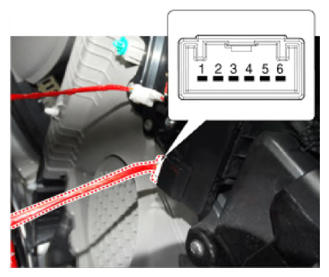

  1. Remove the memory power seat connector
    G14083221Courtesy of HYUNDAI MOTOR AMERICA
  2. When each switch is pressed, check the electricity flow between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.
G14083222Courtesy of HYUNDAI MOTOR AMERICA
