Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the driver seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

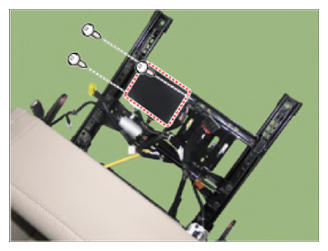

- Loosening the IMS unit mounting screws.

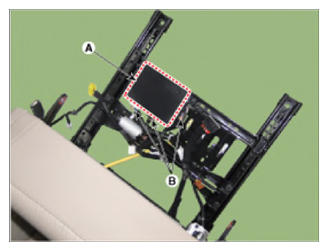

- Disconnect the IMS module connectors (B) and then remove the IMS unit (A).
