Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the memory power seat switch connector (A).
    G14083219Courtesy of HYUNDAI MOTOR AMERICA

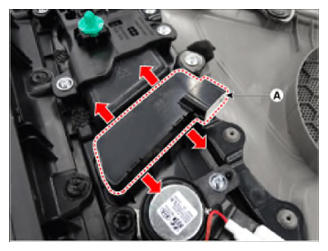

  4. Remove the memory power switch (A) after disengaging the mounting clips.
G14083220Courtesy of HYUNDAI MOTOR AMERICA
