Components And Components Location: Components

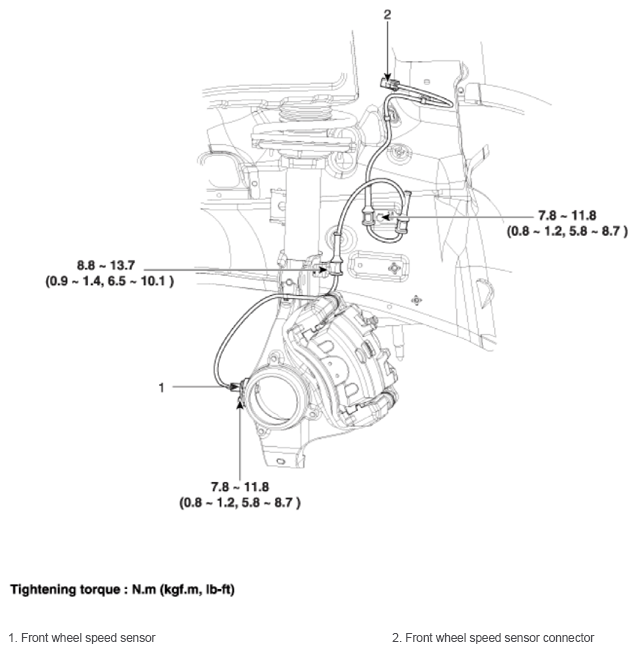

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specifications
G14082594Courtesy of HYUNDAI MOTOR AMERICA
