Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad center panel LH.

    (Refer to Body - "CRASH PAD ")

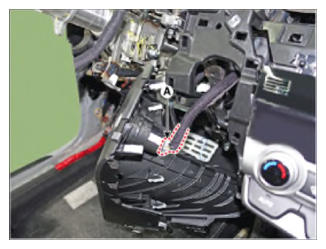

  4. Disconnect the SSB connector (A).
    G14083634Courtesy of HYUNDAI MOTOR AMERICA

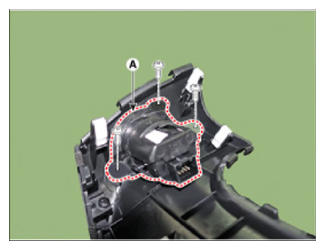

  5. Remove the start/stop button (A) after removing the screws.
    G14083635Courtesy of HYUNDAI MOTOR AMERICA
