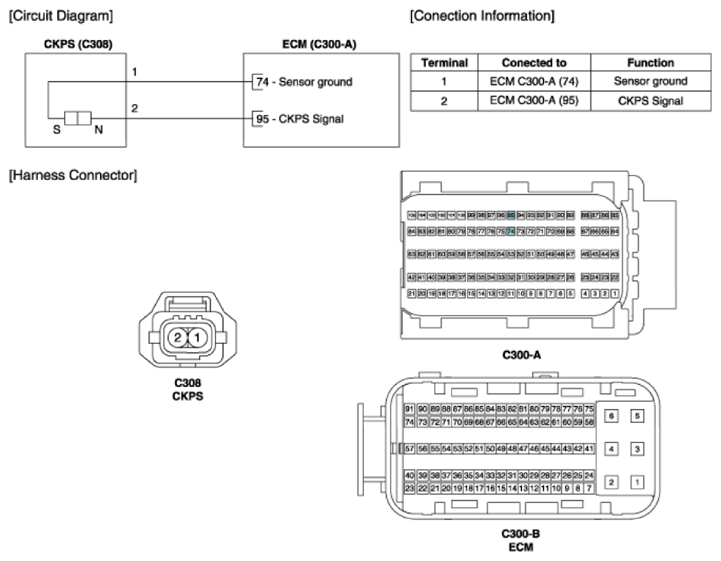

Home › Hyundai › 2020 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram
