Home › Hyundai › 2020 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Crankshaft Position Sensor (CKPS) › Troubleshooting › Waveform

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

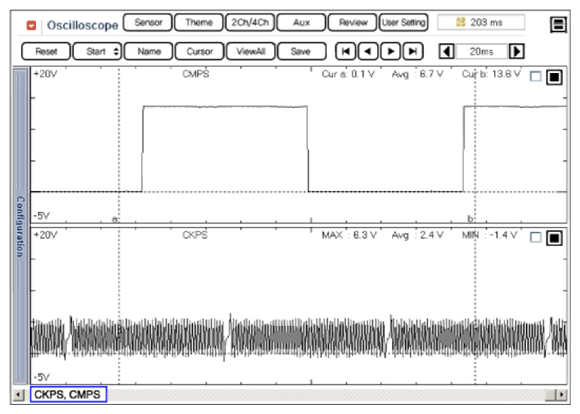

G14084489Courtesy of HYUNDAI MOTOR AMERICA

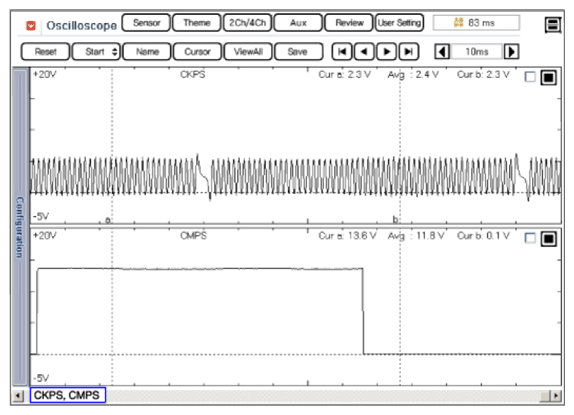

G14084490Courtesy of HYUNDAI MOTOR AMERICA
