Charging System: Battery

• AGM60L - DIN

  Item	Specification
  Model type	AGM60L - DIN
  Capacity [20HR/5HR] (AH)	60/48
  Cold Cranking Amperage (A)	640 (SAE)/512 (EN)
  Reserve Capacity (Min)	100

Information

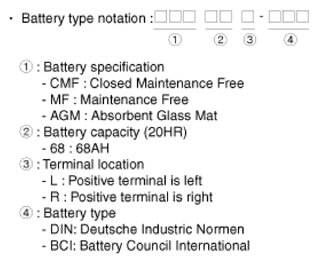

• Model type description

  Courtesy of HYUNDAI MOTOR AMERICA

• Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
  • The rating is the number of amps a new, fully charged battery can deliver at - 18°C (- 0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
  • The higher the CCA rating, the greater the starting power of the battery.
• RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
  • The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
  • The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
