GDS Data Analysis
- Connect GDS and select "DTC Analysis" mode
- Warm up the engine.
- Monitor the parameters related to DTC on the "Current Data" menu of the GDS as shown below.

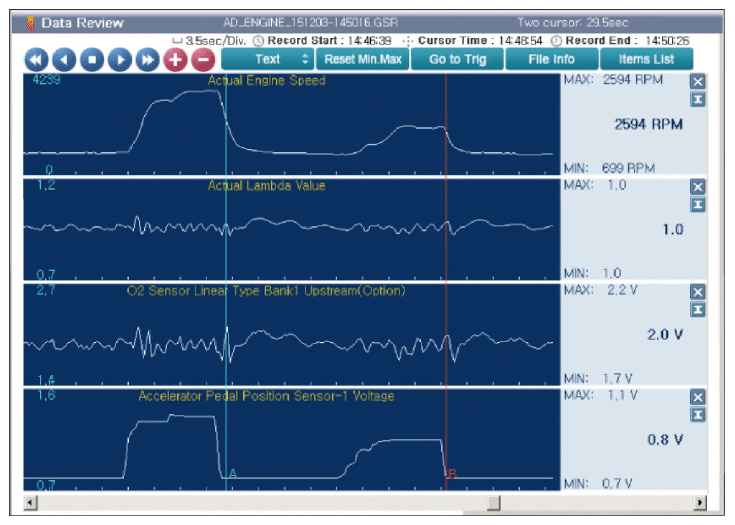

Fig.1) O2 sensor linear type bank 1 upstream is proportional to actual lambda value.
- Is parameter displayed within specifications?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
