Repair Procedures: Removal
WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the ignition key from the vehicle.
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.
- Remove the floor console.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Remove the center console duct (A) after loosening the mounting nut.

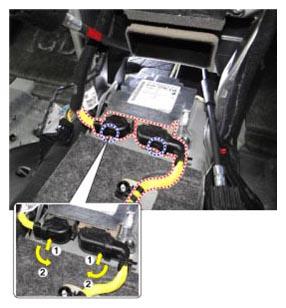

- Disconnect the SRSCM connectors.
- Remove the SRSCM (A) after loosening the mounting nuts.
