Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

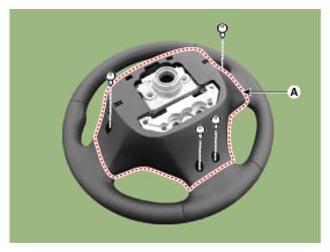

  3. Remove the steering back cover (A).
    G12974964Courtesy of HYUNDAI MOTOR AMERICA

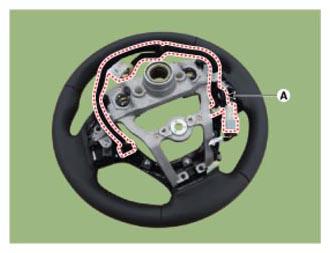

  4. Remove the steering remote control connector (A).
    G12974965Courtesy of HYUNDAI MOTOR AMERICA

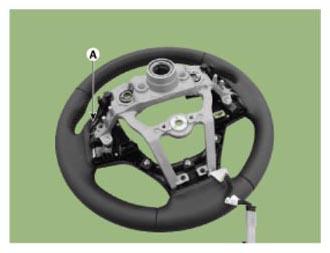

  5. Remove the steering remote control after loosening the screws.
    G12974966Courtesy of HYUNDAI MOTOR AMERICA
