Home › Hyundai › 2020 › Elantra Value Edition › Repair and Diagnosis › Transmission › Transmission Control Systems › IVT Control System - 2.0L › Shift Cable › Components And Components Location › Components

Components And Components Location: Components

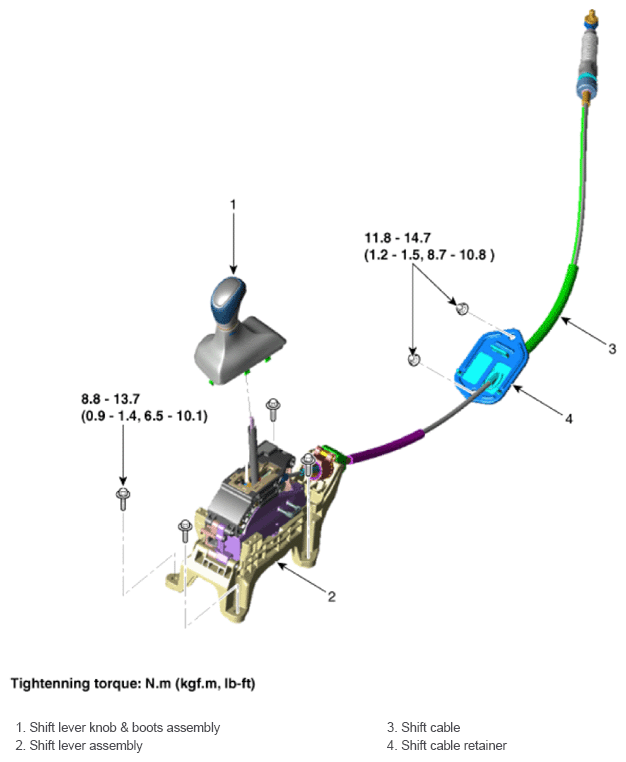

Fig 1: Shift Cable Components Location With Torque Specifications
G14084644Courtesy of HYUNDAI MOTOR AMERICA
