Components And Components Location: Components

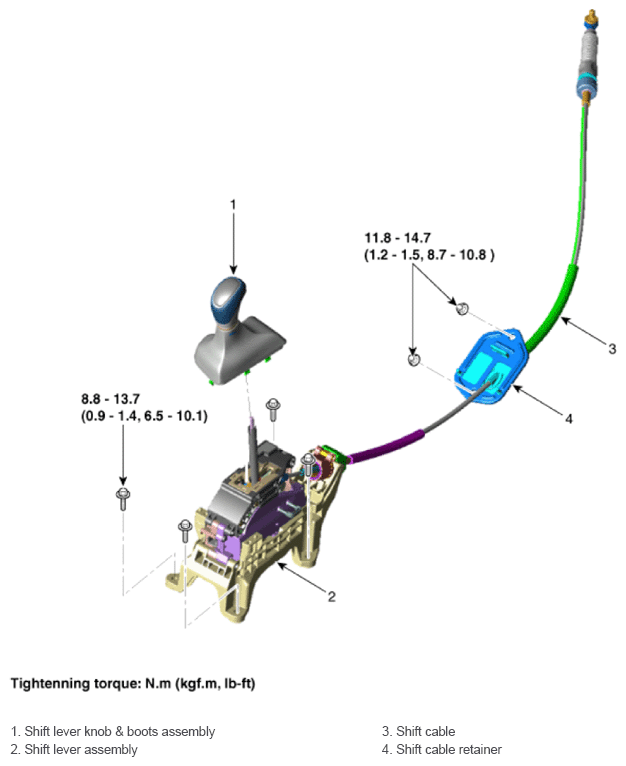

Fig 1: Shift Lever Components Location With Torque Specifications
G14084635Courtesy of HYUNDAI MOTOR AMERICA
