CVVT Oil Control Solenoid (Intake)

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

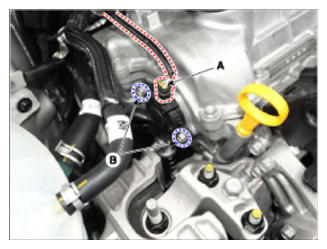

2. Disconnect the CVVT oil control solenoid (A).
3. Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the engine.

Courtesy of HYUNDAI MOTOR AMERICA
