Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • Check the details below before installing the gear actuator assembly.
      1. Check that the gear actuator is placed in the "neutral" state.
      2. Check the assembled state of the O-rings (A).
        G13563348Courtesy of HYUNDAI MOTOR AMERICA
      3. Apply gear oil to the surface of O-rings.
      4. Check the assembled state of the dowel pins (A).
        G13563349Courtesy of HYUNDAI MOTOR AMERICA

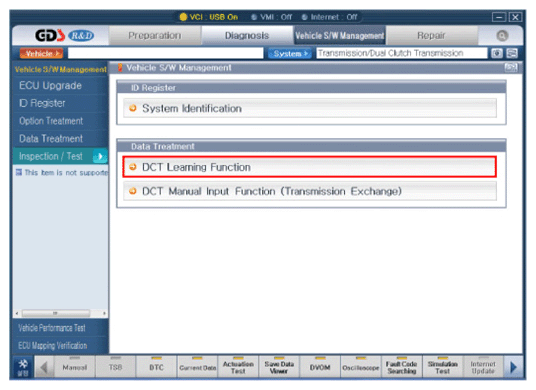

    • Perform the gear actuator learning procedure using the GDS after replacing the gear actuator assembly.
      G13563350Courtesy of HYUNDAI MOTOR AMERICA
