Repair Procedures: Inspection

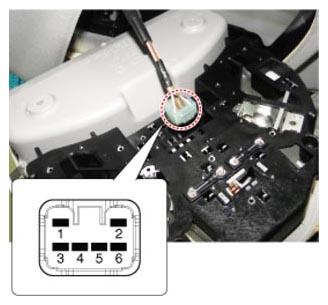

  1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
G13038036Courtesy of HYUNDAI MOTOR AMERICA
G13038037Courtesy of HYUNDAI MOTOR AMERICA
G13038038Courtesy of HYUNDAI MOTOR AMERICA
