Home › Hyundai › 2020 › Santa Fe SE, AWD › Repair and Diagnosis › Electrical › Charging Systems › Wireless Power Charger System › Wireless Power Charging Unit › Components And Positions › Components

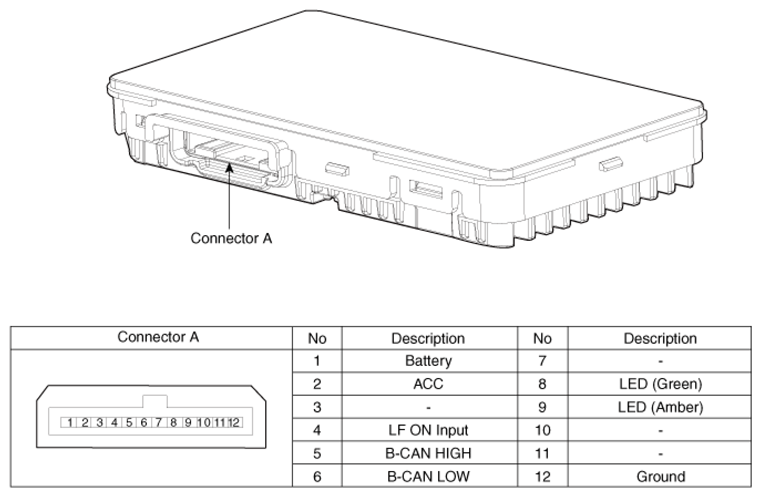

Components And Positions: Components

G13038286Courtesy of HYUNDAI MOTOR AMERICA
