Bank 1/Exhaust

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the camshaft position sensor connector (A).
Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).

Remove the mounting bolt (C), and then remove the sensor.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

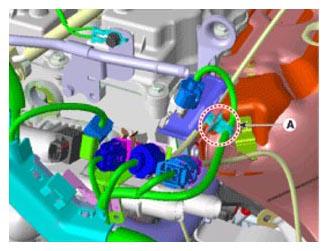

When installing the sensor connector be sure to keep the wiring clip position (A).

Courtesy of HYUNDAI MOTOR AMERICA
