Components And Components Location: Component

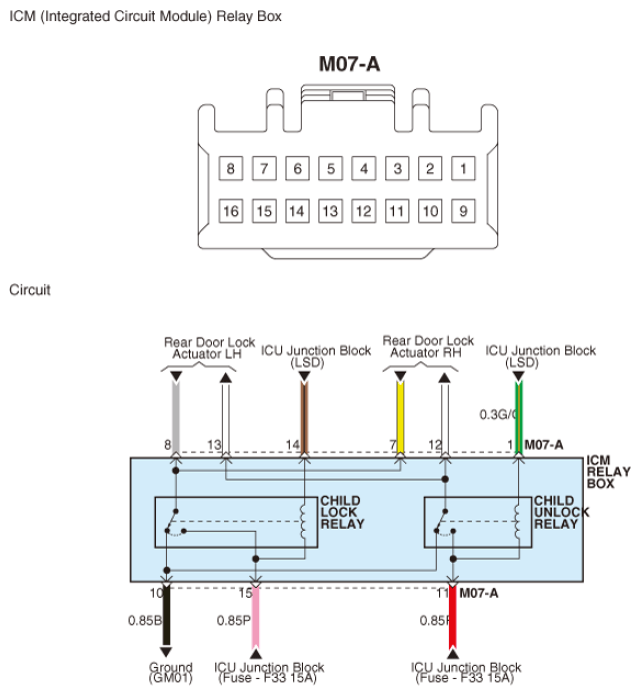

Fig 1: ICM Relay Box Connector End View And Relay Identification
G12999195Courtesy of HYUNDAI MOTOR AMERICA
ICM RELAY BOX RELAY IDENTIFICATION

Relay Description
Child Lock Relay
Child Unlock Relay
