Replacement of PCB Block
Disconnect the negative (-) battery terminal.

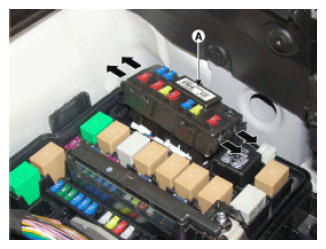

Push 4 hooks in the engine room relay box out to the arrow direction and put up the PCB block (A).
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector and remove the PCB block (A).
