Repair Procedures: Inspection

Information

• Transfer oil should be inspected and refilled every 60, 000 km (40, 000 mile)/4 year.

1. Remove the under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

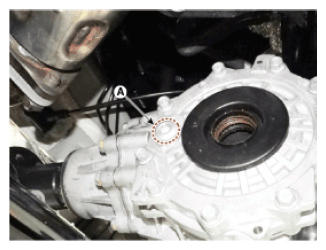

2. Loosen the oil filler plug (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Check the oil level.

   Information

   • Oil level must be up to fill the hole, if not, add oil until it runs over.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Install the oil filler plug with new gasket.

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

5. Install the under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
