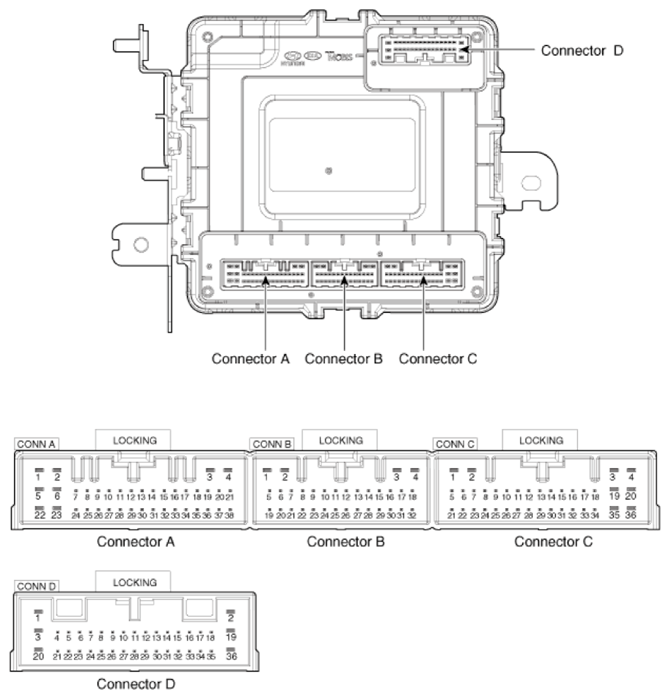

Components And Components Location: Components
CONNECTOR PIN INFORMATION DESCRIPTION
| No | Connector A | Connector B | Connector C | Connector B |
|---|---|---|---|---|
| 1 | Curtain down_output | - | Ground_signal | - |
| 2 | - | - | Ground_power | - |
| 3 | Front washer switch _Input | ESCL (+)_output | Battery (+) ECU | - |
| 4 | PDW power_input | ESCL (-)_output | Battery (+) Power | - |
| 5 | Curtain up_output | Wiper low relay_output | - | - |
| 6 | - | SSB ring illumination_output | Immobilizer antenna power_output | Start feedback_input |
| 7 | ACC relay_output | PDW switch indicator_output | Immobilizer antenna ground_output | - |
| 8 | Multifunction Switch ground _Input | - | IGN 1_Input | - |
| 9 | ESCL COM | - | - | - |
| 10 | Front wiper switch_input | - | - | Wheel speed sensor_input |
| 11 | IGN1 relay_output | B_CAN (Low) | - | |
| 12 | Head lamp high beam switch_input | - | B_CAN (High) | Passenger outside handle switch_input |
| 13 | IGN2 relay_output | Auto light sensor signal_input | Start relay_output | Front bumper antenna (+) _output |
| 14 | - | - | P_CAN (Low) | Front bumper antenna power_output |
| 15 | Front wiper power relay_output | - | P_CAN (High) | Passenger outside handle antenna (+)_output |
| 16 | Rear right seat belt indicator_output | SSB switch2_input | Sunroof status_input | Driver outside handle antenna (+)_output |
| 17 | Rear left seat belt indicator_output | PDWoption_input | PDWswitch_input | Trunk antenna (+)_output |
| 18 | - | Wiper low back up switch_input | - | Interior2 antenna power_output |
| 19 | - | Wiper high relay_output | LIN 3 (Rain sensor) | Interior1 antenna power_output |
| 20 | Security indicator_output | SSB symbol illumination_output | LIN 4 (VIP) | ESCL Enable_output |
| 21 | PDW power_output | - | - | RPM_input |
| 22 | Curtain power_input | - | - | - |
| 23 | - | Auto light sensor ground_output | ACC_input | - |
| 24 | Brake switch_input | - | - | - |
| 25 | - | - | - | Driver outside handle switch_input |
| 26 | Rear curtain switch_input | - | - | - |
| 27 | Front wiper INT volume switch_input | - | - | - |
| 28 | - | - | - | - |
| 29 | Light switch_input | - | K-Line Immobilizer | - |
| 30 | Puddle lamp_output | SSB switch1_input | Rear view switch_input | Front bumper antenna (-) _output |
| 31 | Fog switch_input | ESCL unlock switch_input | P-Position_input | Bumper antenna ground_output |
| 32 | - | Wiper parking switch_input | Clutch lock switch_input (MT) | Passenger outside handle antenna (-)_output |
| 33 | Passenger seat belt indicator_output | IGN2_input | Driver outside handle antenna (-)_output | |
| 34 | Rear center seat belt indicator_output | LIN 1 (PDW) | Trunk antenna (-)_output | |
| 35 | - | - | Interior2 antenna ground_output | |
| 36 | - | Auto light sensor power_output | Interior1 antenna ground_output | |
| 37 | External buzzer_output | |||
| 38 | R-PDW power_output |
